In my network I have a Linksys WRT1900AC Router and a Microsoft RRAS VPN Server. The local LAN address is 10.10.1.0/24.

In Azure, I have a Network that has a VPN connection to my RRAS VPN Server inside my network, but I am forced to use a different subnet with Azure in order to add a required gateway.

I am looking to find out how to allow my local network access that of the Azure Cloud network hopefully with routing from the WRT1900AC Linksys Router, or from the computers inside the network using NET ADD. (I seem to be unable to do that too.)

In Azure, the VPN shows connected, in RRAS it shows connected as well. So there is a VPN connection for sure.

Here is a screenshot of my network setup from Azure.enter image description here

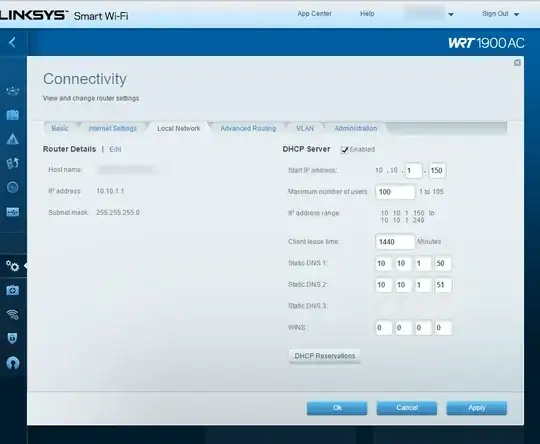

Here is a screen shot of my network in the Linksys Router: enter image description here

Next, here is a screenshot of the routing in the Linksys, hopefully this configuration layout makes sense, and someone could advise what I may be able to put in here.enter image description here

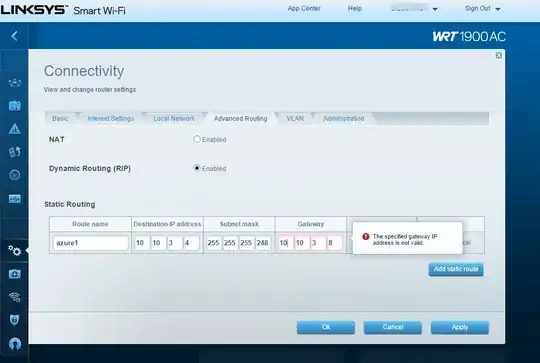

And finally, here is a screen shot of what I am trying to do with that route, but it doesn't seem to be adding... enter image description here

billsecond
  • 199
  • 9

0 Answers0
