How to enable incoming and outgoing world wide web traffic in IIS

Question

Goal: Access website hosted on a remote cloud's IIS via web-browser.

Case: I wanted to open my IIS server (Windows server 2012 virtual machine hosted on Google compute engine) so that the website running locally on it becomes accessible via WWW.

As per EdSf's comment I need to make some firewall changes initially. So

I have enabled WWW firewall settings

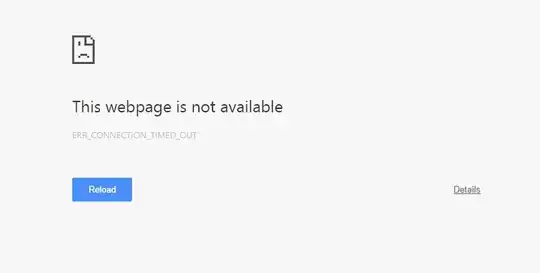

But when I go to that Virtual machine's external IP address, the website is not loading.

Update: Tried allowing remote connections in IIS and I believe this opened IIS to WWW.

The binding config for the site looks like this:

I have enabled both 80 and 443 ports

Now it's running fine on SSL port 443 (except it lacks a SSL certificate). I am unable to access it through http port 80

As per Kamran's comment, I have checked the firewall rules and there seems to be the issue:

The http traffic doesn't seems to be allowed.

How do I change it?

Can you paste a screenshot of your IIS binding config for the site? — Taz, Aug 08 '15 at 12:07
What Taz is getting at is to check if you have properly setup the web application in IIS (app pool, hostname, IP bindings, etc.)..... — EdSF, Aug 09 '15 at 00:45
@xameeramir - In IIS select the site in the tree on the left and screenshot the whole thing (you can blur some information if needed). We can go from there. — Taz, Aug 09 '15 at 01:38
Have you checked the firewall setting on that cloud server? Maybe you are blocked by firewall. — David S., Aug 09 '15 at 12:54
Can you verify if your HTTP service is accessible internally from the Windows? Is the port 80 for TCP protocol opened in the GCE firewall and allowed from any source (0.0.0.0/0)? — Kamran, Aug 11 '15 at 18:45
@Kamran - It doesn't seems to be opened. I have updated my question. — Zameer Ansari, Sep 22 '15 at 06:07
@student it looks like you were able to resolve your issue, as I was able to access the link that you provided in your question. Is it possible to post the answer so other people can benefit from it — George, Oct 25 '16 at 18:55

score 1 · Answer 1 · edited Jun 11 '20 at 10:02

courtesy

I'm writing this post to jot down all the things I need to do during cloudy ASP.NET website deployments.

Get the database connector
Re-Publish project
Grab that awesome URL rewrite module
Set IIS_IUSRS and app pool free
Check that your application pool refers to correct version of .NET
Get re-certified - obviously it's a new server, right?
Import and install certificate
Import the same in IIS

source
