I'm trying to connect to a remote MariaDB server through SSH using Navicat Premium from Windows but all the time I can't and get this error:

2013 - Lost connection to MySQL server at 'reading initial communication packet', system error: 0

I have read and follow many guides on Internet so I get lost at this point and don't know what else to do. This is what I have done:

At server side (remote host with CentOS 6.6 and mysql Ver 15.1 Distrib 5.5.44-MariaDB, for Linux (x86_64) using readline 5.1):

  • /etc/my.cnf.d/server.cnf setup this parameters:

    [mysqld]
#skip-networking

#tried with this
bind-address = 0.0.0.0

#tried with this
bind-address = 127.0.0.1

#tried with this
bind-address = localhost

    RESULT: No success, same error and can't connect

  • /etc/hosts.allow set this parameters:

    # tried with this
#ALL:ALL
# tried with this
ALL:PARANOID
# tried with this
ALL:MY_IP_ADDR

    RESULT: No success, same error and can't connect

  • /etc/ssh/sshd_config setup parameters for allow TCP forwarding:

    AllowTcpForwarding yes

    RESULT: No success, same error and can't connect

Server has IPTABLES enabled but port 3306 is open:

#MySQL/MariaDB
-A INPUT -m state --state NEW -m tcp -p tcp --dport 3306 -j ACCEPT

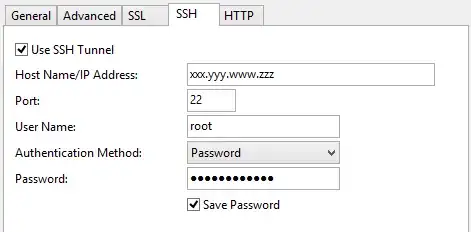

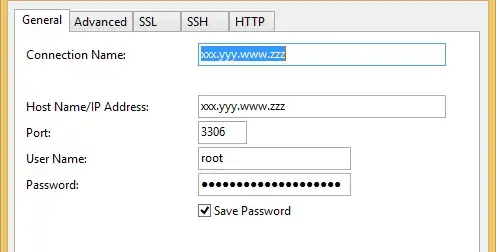

This is how the configuration looks like on Navicat:

enter image description here enter image description here

Can any give me a hand on this? I have spent hours on this without success

user9517
  • 115,471
  • 20
  • 215
  • 297
ReynierPM
  • 710
  • 5
  • 14
  • 30
  • `ssh -L 3306:mysqlServer.example.com:3306 user@mysqlServer.example.com` and `mysql -h 127.0.0.1 -u root -p` would be the normal way of doing this. What are you trying to accomplish by connecting through an SSH tunnel? – Daniel Widrick Jun 30 '15 at 17:14
  • @lVlint67 Because server is not open and I can't access directly to port 3306 then I need to connect through a tunnel – ReynierPM Jun 30 '15 at 17:17

1 Answers1

1

Have you tried 127.0.0.1 as the hostname on the "General" Tab of your application?

It's hard to tell exactly what this application is trying to do (remote/local/dynamic tunnel)

I have to do something similar to get to a remote Oracle Database we use... I have the luxury of having access to either a linux workstation or cygwin.

I am not familiar with the software you are using... But when I have to get into our database from other machines I use PuTTY. A google search (PuTTY Local ssh tunnel) will provide results for instructions: http://howto.ccs.neu.edu/howto/windows/ssh-port-tunneling-with-putty/

Set the local port to whatever you want (I would just use 3306 for clarity) and the destination as yoursever:3306. Then use whatever SQL client you want to connect to 127.0.0.1:3306.

/etc/my.cnf

[mysqld]
bind_addess = 127.0.0.1

iptables -A INPUT -i lo -j ACCEPT
#should be the only firewall statement you need assuming ssh is open..
