I am trying to make a ping request to a 192.168.1.x address on my network, but the request appears to be routing to the wrong LAN card and timing out;

enter image description here

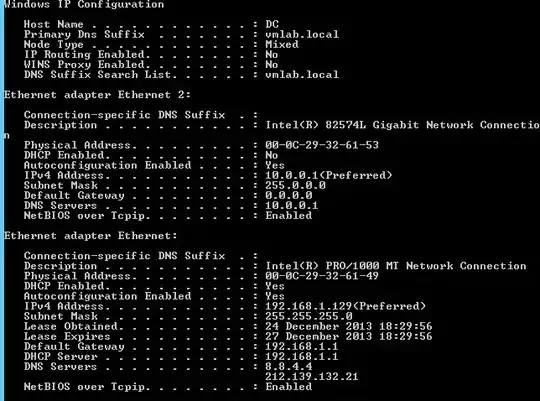

I have a VM with 2 LAN cards setup as follows

enter image description here

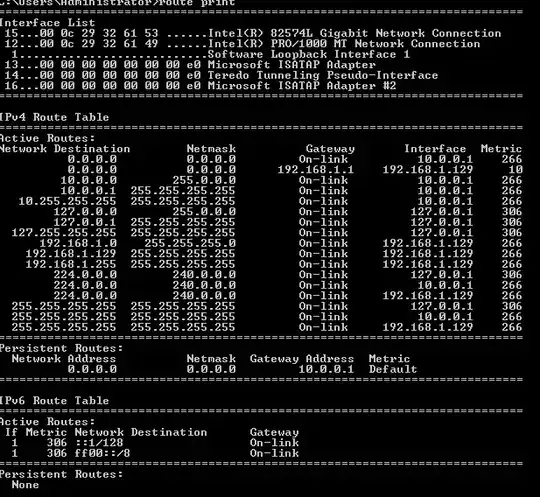

My routing table is

enter image description here

Shouldn't I be able to do this without static routes?

Jason Hyland
  • 923
  • 1
  • 7
  • 10
  • 1
    It is not a routing issue from the point of view of your source machine. As you have an interface with an address belonging to your target subnet and a routing table entry to reflect this, the packets will have been routed correctly. Check for active firewalls/ACLs on your source and target, and that the target is up and has net connectivity. Also check the vm host connectivity and virtual nic settings. – ErikE Dec 25 '13 at 16:18
  • 1
    `Destination host unreachable` means the ARP request did not return a MAC address for `192.168.1.4`. You have the correct route (#9 in your routing table), there's another issue with your network. – Bert Dec 25 '13 at 16:40

1 Answers1

0

I thought I'd leave this in case anyone else has the same issue. Both these network adapters were virtual adapters under ESXi.I simply removed them and then added them again, and the problem disappeared. Not sure why!
