Is it possible to place a graphics card like the AMD HD6970 in a 1U blade server?
I’m looking at either an HP or a Dell, including these two models:
I really do appreciate the help, as I don't know if this is possible.
Is this possible to place like a AMD 6970 HD graphics card on a 1u server?
It depends on the specific server, but probably not.
Model would be a dell, or hp probably. I'm looking at http://www.ebay.co.uk/itm/400445182450?s...1423.l2649 and http://www.ebay.co.uk/itm/110778364805?s...1423.l2649
Your links are truncated; there is an ellipsis in there. You got lucky this time because eBay links only need the item id which fortunately for you was actually present in the links you posted, but in the future, keep an eye out to make that sure you post the full link.
Anyway, there’s a couple of problems with your question:
You would not be able to use a 6970 HD with these.
As to the general question of a video-card in a 1U blade server, one rack unit (1U) is 1.75" (4.445cm) high (figure 1), so you would need at least 2U for most consumer-grade video cards.
Of course this is if the server has slots for vertically mounting cards. Most servers often tend not to support expansion through cards in general, but the ones that do, will often have their slots oriented so that the card plugs in horizontally, in which case the dimensions of the card are all but irrelevant, even in a half-rack (figure 2). Other will have a daughterboard/riser (figure 1) which will let you install a card horizontally as well—this is common on low-profile desktop systems (figure 2).
Regardless, you will have to do some research for yourself to find out for sure whether it will be compatible or not when you decide which specific server and card you want to buy. The size of the card will vary from vendor to vendor, so for example, a Sapphire HD 6970 will likely be at least a little different from a Powercolor HD 6970 which will in turn be different from a reference (AMD branded) card.
The bottom line is that servers are just not meant for this sort of expansion; they are generally only meant to have their RAM and drives upgrade, and perhaps a CPU. This makes sense because servers don’t usually need a powerful video- or audio-card.
You should examine whether you need the video upgrade or else whether you need the server instead of a regular desktop system.

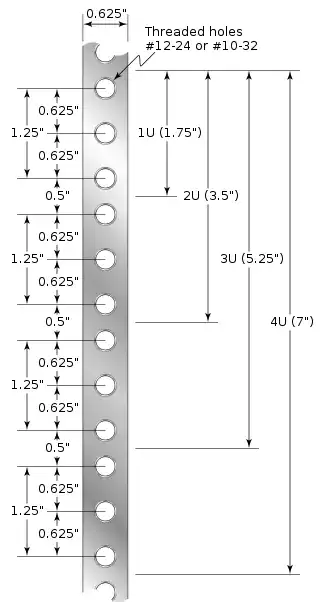

Figure 1: Standard vertical dimensions of server racks

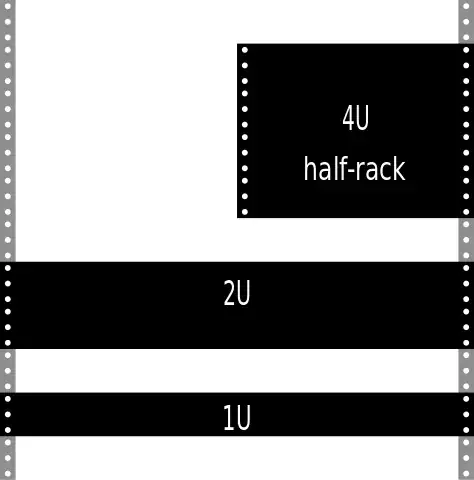

Figure 2: Standard horizontal dimensions of server racks

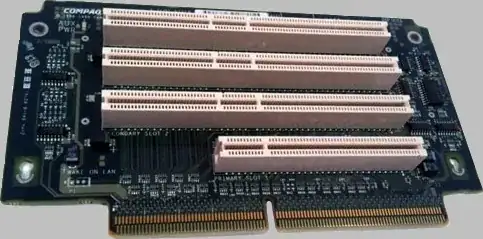

Figure 1: Photo of a riser-board from a Compaq

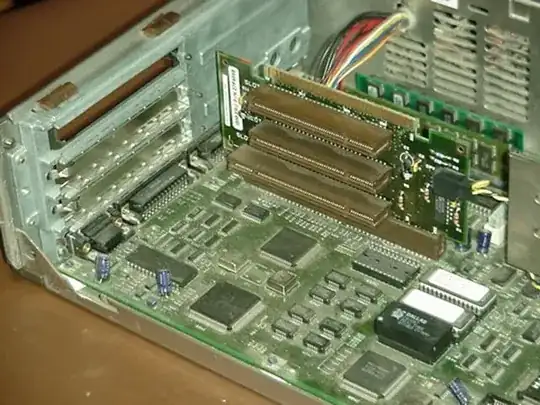

Figure 2: Photo of an IBM system with a daughterboard with MCA slots
It depends on the specific server. 1U server are not high enough for a normal GPU. So you would need a riser card which also turns the slot 90 degrees.
That is possible, e.g. my Dell R300 has two rotated PCI-e x8 slots.
Then if it fits you will need to check the airflow. In 1U cases this is often quite well planned, and that usually does not assume that someone will add a 188W (or similar power using) graphics card.
This is less of a problem wit 4U servers or 2U servers (like the two models which you listed).
Repeat, the listed examples are not 1U.
Another challenge would be finding the 6 or 8 pins PCI-e to graphics power cables. Do not assume that a 2U server comes with these. Nor is it safe to assume that they will be in any way silent. If you put a high powered GPU card in them then put them in a sound proofed server room. Do not assume that you can put them in your living room and play games on them.
(Sorry for not sounding more positive. 2U servers with iLo as fun as play thing, however they have their limits).
