I'll try to use my script ( which has been written for msa p2000 g3 ) with old san array msa2324. It seems like array actually do authorization and return session key, but my next request ( with sessionKey cookie ) still returns Unauthorized access requested. See screenshots below

I had rebooted both management controllers, one by one, but problem stil actual. I even use administration account in script - auth fail again

Has anyone description of xml api protocol for msa2324?

or, please name any soft that work with msa2324 via xml api - i self can find answer in network dump :)

screenshots with wireshark "follow tcp stream" window for old ( auth fail ) and new ( auth pass ) devices

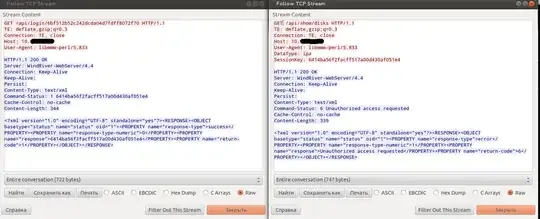

  • msa2324fc, old array, authorization failed

enter image description here

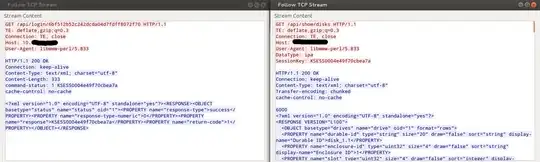

  • msa p2000 g3, new array, authorization pass

enter image description here

HopelessN00b
  • 53,795
  • 33
  • 135
  • 209
Oleg Korchagin
  • 126
  • 1
  • 9

2 Answers2

2

Add a cookie to your request containing two elements, wbiusername and wbisession key. eg, wbiusername=manage; wbisessionkey=b19ec2e62b49ba39f019ab187ea5efcb

I keep the sessionKey header in addition to the cookie to support these older MSAs in addition to the newer ones, works a treat and I don't have to resort to telnet.

Peter Surplice
  • 21
  • 2
0

Workaround: use telnet instead of http access. Code for telnet login is trivial

To get answers in XML format, first use command

set cli-parameters api pager off
Oleg Korchagin
  • 126
  • 1
  • 9
