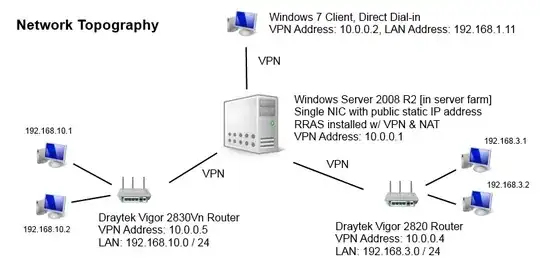

I am trying to create a simple VPN hub-and-spoke topography. I have managed to get quite a long way and I hope the following diagram describes what I have been able to build thus far:

VPN topography

As you can see, the hub is a Windows Server 2008 R2 box running RRAS. The spokes with either be Dreytek routers with a number of PCs (or other devices) on the LAN behind them or PCs dialling in directly to the server. All of this works as expected except for the fact that none of the LAN devices at the spokes are able to communicate with the devices at the other spokes. For example, the direct dial-in PC (192.168.1.11) cannot communicate with 192.168.3.1 or 192.168.10.1.

Things that I have tried and work:

  • All of the LAN devices can ping any of VPN addresses (so, for example, the direct dial-in PC can ping 10.0.0.1, 10.0.0.4 and 10.0.0.5).
  • I have enabled Syslog on the Draytek routers and can see the ICMP traffic through the firewall when the 10.0.0.x address of the router is pinged (for example, if I ping 10.0.0.5 from the direct dial-in PC, I can see the firewall allowing the ping).
  • I have added static routes to the Dreytek routers (for example, on the 10.0.0.5 router, I have added a route for 192.168.1.0 / 24 and 192.168.3.0 / 24 routing via 10.0.0.1).
  • I have added static routes to the direct dial-in PC for 192.168.3.0 / 24 via 10.0.0.4 and 192.168.10.0 / 24 via 10.0.0.5
  • I have added static routes to the server for each LAN at the end of the spokes (for example, I added a route for 192.168.1.0 / 24 to route via 10.0.0.2, and 192.168.10.0 / 24 via 10.0.0.5). I am having trouble persisting these routes so that they re-establish if the VPN connection drops and re-connects.

Things that don't work:

  • The server is unable to ping any of the LAN PCs (for example, it can't ping 192.168.10.1 or .2 etc.). Syslog on the routers does not see any ICMP traffic.
  • The client PCs are unable to ping any remote PCs (for example, 192.168.10.x PCs cannot ping 192.168.3.x PCs or the direct dial-in client at 192.168.1.11).

If a use tracert or pathping, it does look like the traffic is trying to go via the server but it never gets there. For example:

C:\Users\Administrator>pathping -n 192.168.10.2

Tracing route to 192.168.10.2 over a maximum of 30 hops

  0  10.0.0.1
  1  10.0.0.5
  2     *        *        *

I am really at a loss as to what to do next. It must be possible to get this working... I have found so many articles about this topic but nothing seems to address this particular problem. So I guess my two main questions are:

  • What am I missing to get the remote LAN PCs to be able to communicate with each other?
  • What do I need to do to persist the routes via the VPN clients to their LANs?
  • Can I avoid static routes completely and use dynamic routes? I have tried using RIP but the RIP multicasts come in over the VPN (I have seen this using Wireshark) and I can't create RIP on the "Internal Interface".

One idea that I've had... Could the problem be anything to do with IPv6? When I was experimenting, I tried disabling it using Microsoft Fixit 50409. After I did this, neither the routers nor the direct dial-in W7 client were able to establish a VPN connection until I re-enable it... I had assumed that all traffic would be IPv4 but perhaps I'm wrong?

Many thanks!

Edit: In response to Stephane's comment, here are the routing tables for the various components in the network...

Server:

C:\Users\Administrator>route print -4
===========================================================================
Interface List
 18...........................RAS (Dial In) Interface
 11...00 15 5d 2f 4d 2d ......Microsoft Virtual Machine Bus Network Adapter
  1...........................Software Loopback Interface 1
===========================================================================

IPv4 Route Table
===========================================================================
Active Routes:
Network Destination        Netmask          Gateway       Interface  Metric
          0.0.0.0          0.0.0.0     109.228.20.1   109.228.20.174      6
         10.0.0.1  255.255.255.255         On-link          10.0.0.1    276
         10.0.0.2  255.255.255.255         10.0.0.2         10.0.0.1     21
         10.0.0.4  255.255.255.255         10.0.0.4         10.0.0.1     21
         10.0.0.5  255.255.255.255         10.0.0.5         10.0.0.1     21
     109.228.20.0    255.255.252.0         On-link    109.228.20.174    261
   109.228.20.174  255.255.255.255         On-link    109.228.20.174    261
   109.228.23.255  255.255.255.255         On-link    109.228.20.174    261
        127.0.0.0        255.0.0.0         On-link         127.0.0.1    306
        127.0.0.1  255.255.255.255         On-link         127.0.0.1    306
  127.255.255.255  255.255.255.255         On-link         127.0.0.1    306
     192.168.1.11  255.255.255.255         10.0.0.2         10.0.0.1     21
      192.168.3.0    255.255.255.0         10.0.0.4         10.0.0.1     21
     192.168.10.0    255.255.255.0         10.0.0.5         10.0.0.1     21
        224.0.0.0        240.0.0.0         On-link         127.0.0.1    306
        224.0.0.0        240.0.0.0         On-link    109.228.20.174    261
        224.0.0.0        240.0.0.0         On-link          10.0.0.1    276
  255.255.255.255  255.255.255.255         On-link         127.0.0.1    306
  255.255.255.255  255.255.255.255         On-link    109.228.20.174    261
  255.255.255.255  255.255.255.255         On-link          10.0.0.1    276
===========================================================================
Persistent Routes:
  Network Address          Netmask  Gateway Address  Metric
          0.0.0.0          0.0.0.0     109.228.20.1       1
===========================================================================

Note: One of the problems I have is that I have to manually add the routes for 192.168.1.11, 192.168.3.0/24 and 192.168.10.0/24 every time the VPN clients connect. This is clearly a serious problem as I have to be able to persist these routes, but maybe it's not possible?

Windows 7 Client:

C:\Windows\system32>route print -4
===========================================================================
Interface List
 26...........................CodeArt Consulting VPN
 17...90 b1 1c 67 94 d4 ......Realtek PCIe GBE Family Controller
 13...68 94 23 36 83 ba ......Bluetooth Device (Personal Area Network)
  1...........................Software Loopback Interface 1
 11...00 00 00 00 00 00 00 e0 Microsoft ISATAP Adapter
 16...00 00 00 00 00 00 00 e0 Microsoft ISATAP Adapter #2
 15...00 00 00 00 00 00 00 e0 Teredo Tunneling Pseudo-Interface
 18...00 00 00 00 00 00 00 e0 Microsoft ISATAP Adapter #3
===========================================================================

IPv4 Route Table
===========================================================================
Active Routes:
Network Destination        Netmask          Gateway       Interface  Metric
          0.0.0.0          0.0.0.0      192.168.1.1     192.168.1.11     10
         10.0.0.0        255.0.0.0         10.0.0.1         10.0.0.2     11
         10.0.0.2  255.255.255.255         On-link          10.0.0.2    266
   109.228.20.174  255.255.255.255      192.168.1.1     192.168.1.11     11
        127.0.0.0        255.0.0.0         On-link         127.0.0.1    306
        127.0.0.1  255.255.255.255         On-link         127.0.0.1    306
  127.255.255.255  255.255.255.255         On-link         127.0.0.1    306
      192.168.1.0    255.255.255.0         On-link      192.168.1.11    266
     192.168.1.11  255.255.255.255         On-link      192.168.1.11    266
    192.168.1.255  255.255.255.255         On-link      192.168.1.11    266
      192.168.3.0    255.255.255.0         10.0.0.1         10.0.0.2     11
     192.168.10.0    255.255.255.0         10.0.0.1         10.0.0.2     11
        224.0.0.0        240.0.0.0         On-link         127.0.0.1    306
        224.0.0.0        240.0.0.0         On-link      192.168.1.11    266
        224.0.0.0        240.0.0.0         On-link          10.0.0.2    266
  255.255.255.255  255.255.255.255         On-link         127.0.0.1    306
  255.255.255.255  255.255.255.255         On-link      192.168.1.11    266
  255.255.255.255  255.255.255.255         On-link          10.0.0.2    266
===========================================================================
Persistent Routes:
  None

Note: I have added the routers to 192.168.3.0/24 and 192.168.10.0/24 manually.

Router 10.0.0.5 / 192.168.10.0/24:

Key: C - connected, S - static, R - RIP, * - default, ~ - private
*            0.0.0.0/ 0.0.0.0          via 188.30.37.17      WAN2
C           10.0.0.1/ 255.255.255.255  directly connected   VPN-1
S           10.0.0.0/ 255.255.255.0    via 10.0.0.1         VPN-1
C~      192.168.10.0/ 255.255.255.0    directly connected    LAN
S        192.168.1.0/ 255.255.255.0    via 10.0.0.1         VPN-1
S        192.168.3.0/ 255.255.255.0    via 10.0.0.1         VPN-1
S       188.30.37.17/ 255.255.255.255  via 188.30.37.17      WAN2

Note: The static routes to 192.168.1.0/24 and 192.168.3.0/24 have been added to the router and are persisted as expected.

As far as I can tell, all of the routes are in place correctly but of course, there may be a mistake or something is missing...

Ben Abbott
  • 41
  • 1
  • 4
  • Could you please clarify your network topology ? Specifically, it would make things much more clear if you could describe things in terms of network segment and add network ask to all IP addresses/segments. I'm asking because I suspect you have a simple routing issue but I can't figure out exactly what your topology and routing table is for each device. – Stephane Apr 15 '13 at 08:37
  • Hi Stephan. Thank you for your comment. I have added the routing tables as requested and I hope that you can shed some light on the problem for me. Many thanks, Ben. – Ben Abbott Apr 15 '13 at 09:10

1 Answers1

0

I have been able to resolve this issue.

The problem was that I had configured the router to use NAT for the VPN connection. Changing it to routed complete fixed the problem, as all of the routing information was correct. The devices on the LANs at each spoke can now communicate with each other.

Cheers,

Ben
