I need to cost out some switching and figure out how to network a PC to this type of network.

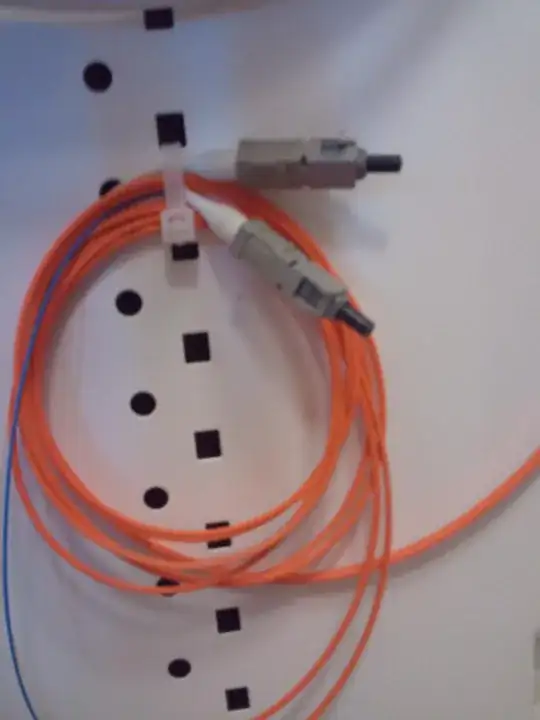

One end

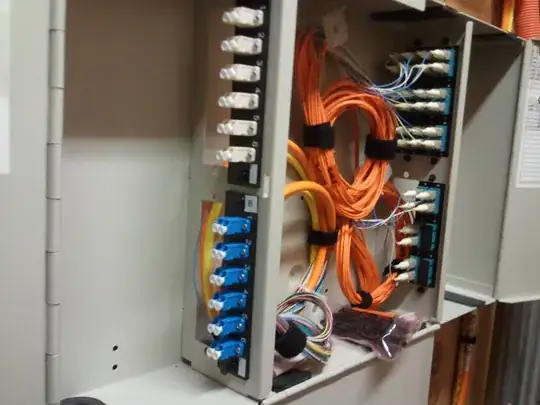

Terminated

Clarifying: This is to connect units in a high rise facility. Each unit has the top picture in a closet. In every other floor in the hallway the cables from two floors are brought together in a panel. Then each panel sends a cable to the basement.

So I'm trying to figure out how to

  1. Attach a PC (via cat5) at the apartment level.
  2. Concentrate the signals from the units at the hallway level and send this down to the basement where it would get sent to a server.
ethrbunny
  • 2,369
  • 4
  • 41
  • 75
  • 1
    I will add that there is a 17.23% chance--depending on how tight that cable tie is in the picture and how many times people have tugged on the connector--that the fiber is now "marginal" and should be metered before use. – JasonAzze Feb 08 '13 at 18:51
  • in nutshell it is Optical fiber – AminM Feb 15 '14 at 18:34

2 Answers2

12

That's not a network - that's just the physical medium. More information is on Wikipedia.

The type of connectors you have on top are LC, the connectors you have on the bottom are SC.

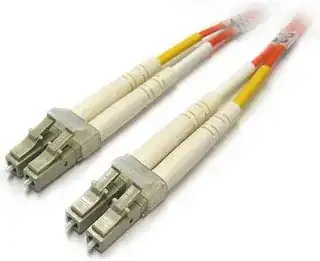

LC:

LC connectors

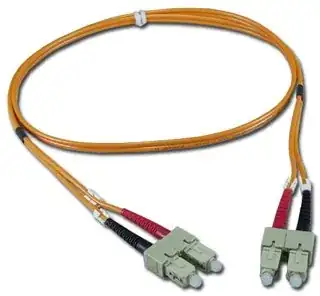

SC:

SC connectors

MikeyB
  • 39,291
  • 10
  • 105
  • 189
  • 3
    +1 Side note, Orange is OM2 fiber. Aqua is OM3, "better" than OM2 and capable of higher speeds. Yellow is single-mode fiber, used for long distance situations usually. – Chris S Feb 08 '13 at 19:04
5

SC multimode fiber.

Generally you don't network a computer directly into fiber (although you can buy HBAs for PCs). Normally Fiber is used as a backbone for your network. Switches then connect to this fiber, and connect out to PCs over copper/RJ45.

Insomnia
  • 507
  • 4
  • 10
