I'm running on esxi(which has 2 physical NIC intern -extern) 2 Ubuntu 12.04VM's each connected to internal NIC. How could I bridge theme to have internet on both of theme without to use for each one an external IP. Is it possiblie to do this?

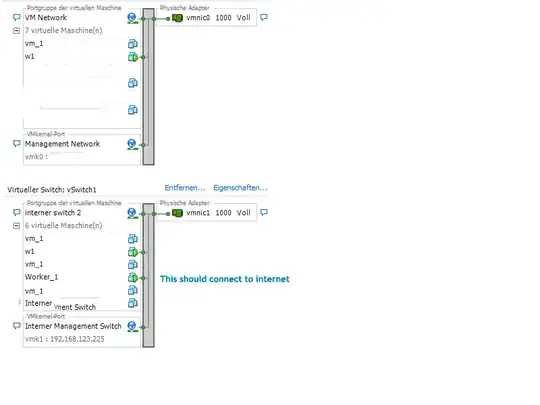

enter image description here

fefe
  • 357
  • 1
  • 8
  • 18

2 Answers2

0

ESXi is not a firewall/router. What you're asking for is generally included with desktop virtualization products (VMWare Workstation, Virtualbox etc).

pauska
  • 19,620
  • 5
  • 57
  • 75
  • Practically it means that for each machine I need external IP connected to External NIC? There is no way to bridge? – fefe Jan 29 '13 at 12:46
  • ESXi does not let you share one external IP. Either get more IP adresses and assign each VM their own, or install a gateway/router (virtual or physical) and let it share the IP with NAT. – pauska Jan 29 '13 at 12:52
0

You need to think of ESXi as a simple Layer 2 switch. Any kind of fancy NATing / routing either needs to happen on a VM or on something external to the boxes. In your case, you should see up a vSwitch with one of your NICs and then connect that NIC to a NATing router.

Dan
  • 15,430
  • 1
  • 36
  • 67
