SBS Server 2003 (32 bit) - SQL + Exchange - is AWE useful?

Question

We have an SBS server running SQL Server 2005 and Exchange, that is notoriously tight on memory. (It's a battle between the sql and exchange).

It's not the time yet to replace it completely, but I wonder if stocking up to 8GB (the maximum the board supports, it currently holds 4GB) would help.

Since it's a 32 bit OS, the additional memory would be visible through AWE only, which at least SQL Server seems to support.

Can I expect improvements?
What config changes (Windows, SQL Server) are necessary so it makes use of AWE?
Can Exchange benefit from the additional memory, too?

score 3 · Accepted Answer · answered Jul 28 '09 at 16:17

3

SBS 2003 will only see 4GB of physical memory so AWE isn't going to do anything for you. Have a look at Memory Limits for Windows Releases.

answered Jul 28 '09 at 16:17

squillman

37,883
12
92
146

Damn, you, sales department! :D - and thanks for the quick answer – peterchen Jul 28 '09 at 16:19
I believe these limits are much more rational in the 2008 editions.. for now, anyway.. – Jeff Atwood Jul 28 '09 at 22:56

score 0 · Answer 2 · edited Apr 17 '19 at 20:00

Small Business Servers nearly always use all the available memory, by design. Both Exchange and SQL Server (by default) will try to use all the available memory, but will release it 'on demand'. Result: your memory is always going to be full.

That's not the same thing as not having enough memory, that is just the server applications using the available resources to maximum effect. Unused memory is wasted memory.

The fact that SQL (by default) uses all available memory can cause problems, particularly the SBSMONITORING instance, which on some systems can begin to consume and unreasonable amount of memory (more then 100 Mb or so is unreasonable). If that's happening on your system then consider limiting the memory available to that instance. These steps in a command prompt will do it:

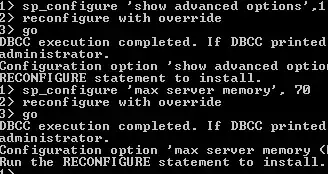

> osql -E -S YOURSERVERNAME\sbsmonitoring
> sp_configure 'show advanced options',1
> reconfigure with override
> go
> sp_configure 'max server memory', 70
> reconfigure with override
> go

_{(source: sbslinks.com)}
(image courtesy of Susan Bradley)

That limits the memory to 70 Mb for the SBSMONITORING instance (70 Mb is a value that has been suggested within the SBS MVP community, your mileage may vary). If you are running SBS Premium and have ISA Server, then you might also need to throttle the ISA logging database using the same technique. In this case, the instance name is MSFW and I have found that 70 Mb works for that, too.

Don't try to limit the Sharepoint instance, though. That should be left on its default settings.
