I'd like to find out the problem of my network configuration

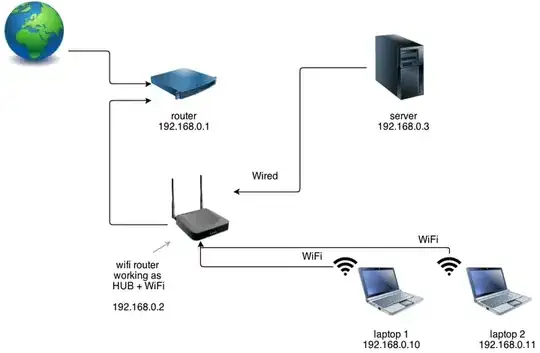

I have network configuration is like in this diagram:

network diagram

The problem is between laptop1 and laptop2. At first I thought it was samba server problem. I was configuring samba server on one of the laptops and I wasn't able to access the shares from the second laptop no matter what I was doing. After installing/removing/configuring samba-server a couple of times I realized that the problem resides somewhere else.

Laptop configurations:

- Laptop1: ubuntu 12.04
- Laptop2: Windows 7/ ubuntu 12.04 ( dual boot )
- Server : ubuntu 12.04

When I do "ping 192.168.0.10" from laptop2, I get "Destination host unreachable". The same situation is when I ping in other direction. When I access Laptop1 shares from Laptop2, having windows 7 loaded, I get the error message: "Error code: 0x80070035 The network path was not found."

When I ping "server" or "router" or "wifi router" from any of laptops I get a reply. The same with windows shares, I am able to access "server"s shares from Windows and Ubuntu, from any of my laptops.

Netbios can't function correctly, that's obvious, I am unable to access windows shares between laptops. I assume that on "wifi router" is a miss-configuration, but I can't find what specifically. The "Wifi router" works as Hub + wifi, it is connected to "router" not in WAN port but in LAN1.

Please, help me correctly configure the router to make them see each-other, or at least make NetBios work correctly, between laptops, to be able to access windows shares.

Thanks!

Jim Salter
  • 717
  • 5
  • 11
Svenv
  • 171
  • 1
  • 5
  • I am assuming that Laptop2 will be booted into Ubuntu (we can return to Windows if necessary later). Please post output of `sudo ifconfig` on both Laptop1 and Laptop2 **in full**, followed by output of `sudo iptables-save` on each laptop **in full**. We can proceed from there. – Jim Salter Nov 26 '12 at 01:00
  • make sure that NetBios over TCP/IP is enable. – KK Patel Nov 26 '12 at 07:45
  • Thanks for your input, but I found the cause. It was the Wireless router miss-configuration, as I suspected – Svenv Nov 26 '12 at 19:28

1 Answers1

4

The router has client isolation turned on, prohibiting its WiFi clients from talking to each other. Just turn it off. If you specify the make, model, and firmware (if non-standard) of the router, we can tell you the exact location and name of this option.

David Schwartz
  • 31,449
  • 2
  • 55
  • 84
  • Thanks!!! That was the cause. In Wireless Settings is an option **AP Isolation** that was enabled. After disabling, pinging second laptop worked, and I finally was able to access the windows shares. My router is Tenda W308R by the way. – Svenv Nov 26 '12 at 19:25
  • 1
    Settings found here: ![Router setting page](http://goo.gl/aCMvd) – Svenv Nov 26 '12 at 19:46
