I am hosting a website and I found that the traffic on my server is quite high.

My Linux server is behind a router in a DMZ. I would like to see the traffic made on my Linux box on the eth0 interface, based on the public IP address of the client.

I would then like to see which client is stealing my bandwidth.

Or is it better if I do it from my router with DD-WRT?

Thanks!

Jonathan Rioux
  • 1,938
  • 6
  • 33
  • 57

2 Answers2

2

If you just need a simple curses-based interface, iptraf might be what you need. It shows you what connections are currently going on.

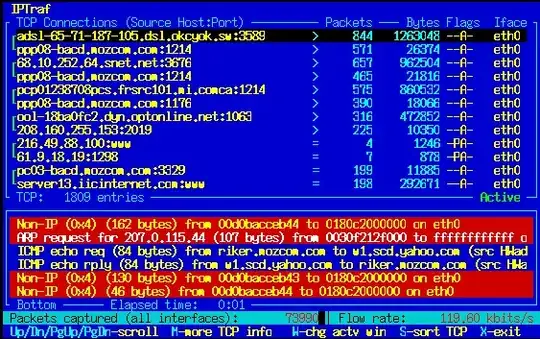

iptraf screenshot
(source: seul.org)

However, if you need something more sophisticated, you could use the ipt_netflow Netfilter-target, which will send all the accounting-data to a Netflow-target.

P.S.: The OpenWRT website gives more pointers about bandwidth-monitoring.

Community
  • 1
Alexander Janssen
  • 2,607
  • 16
  • 21
0

Most DDWRT builds come with an application called RFlow. This application logs the traffic inbound and/or outbound in the router itself, together with the IPAddress, Port and the number of octets.

The data is collected in a database in the network (preferably internal). You could filter out the relevant data from this DB and analyze it.

I think RFlow is a port of the Cisco NetFlow protocol. So there should be a plethora of application floating around, which will help you analyze the data.

Binaek Sarkar
  • 101
