I have a pfsense box with 6 LAN ports. I'd like to use one as the WAN port, and 5 as local LAN ports, just like a home gateway/router. How to setup the LAN ports so that they are all in the same subnet? It seems that the bridging function only wants to bridge between WAN and LAN?

James
  • 51
  • 1
  • 1
  • 5

1 Answers1

3

Three major steps are required for this:

1) Assign and enable all the additional interfaces. These will show up by default as OPTn interfaces. You can rename them to whatever you like (maybe LANn instead?) - just be sure to enable them as well. Here is a screenshot of my interfaces:

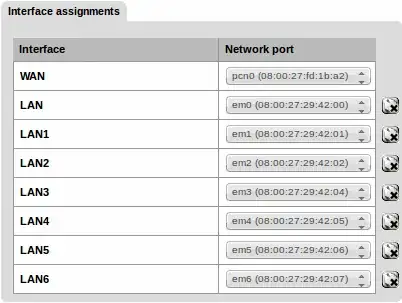

pfSense Interface Assignments

2) Create a new bridge that has the original LAN interfaces and all of the LANn as members.

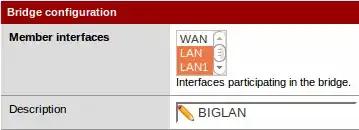

pfSnese Create Bridge

3) Add a firewall rule to allow traffic across each interface of the bridge. I would suggest starting with a rule like "Protocol: any, Source: LAN subnet, Destination: LAN subnet". Depending on your needs you may also want to add a rule to allow internet access as well.

Goyuix
  • 3,214
  • 5
  • 29
  • 37
  • I hate dragging up old questions, but I would like to see this modernised for the latest version of pfSense. I'm trying to do this now and in the creation of the extra LANn interfaces, I have to assign an IP address for the port, but it can't be in the same subnet, although I need it to be. – Madivad Apr 03 '17 at 15:51
