I'm currently evaluating Microsoft System Center Data Protection Manager 2010.

When creating a new protection group, I can select to co-locate the client data in the storage pool.

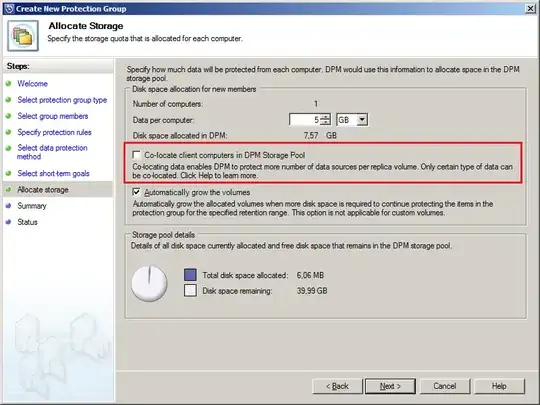

enter image description here

Now, the documentation states:

System Center Data Protection Manager (DPM) allows you to co-locate your protection groups on a volume or tape. Co-locating your protection groups allows you to use your storage more effectively.

Awesome! So, let's enable it.

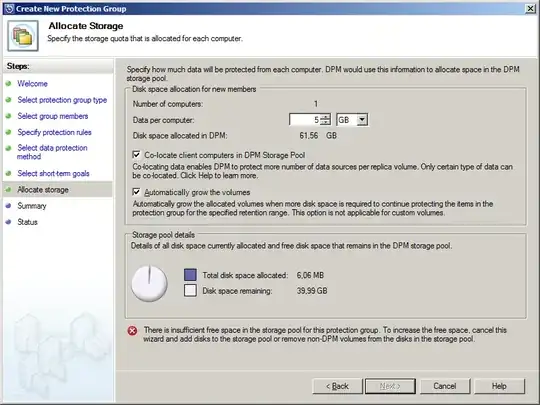

enter image description here

Now I require almost 10x as much storage space. Why?

Joel Coel
  • 12,932
  • 14
  • 62
  • 100
Oliver Salzburg
  • 4,635
  • 17
  • 55
  • 82
  • I was unable to find any Data Protection Manager tag and can't create one either. A little help would be appreciated :) – Oliver Salzburg Mar 06 '12 at 15:57
  • 2
    I found the scdpm tag-- that's not exactly the easiest name to find, and its worthless for google. I'll write a meta post asking for re-name suggestions. – Joel Coel Mar 06 '12 at 16:03

1 Answers1

1

According to this post on Microsoft's forums, it is to do with the initial setup and configuration of co-location. Don't have a better source than it aside from the response is from a Microsoft Employee.

When you configure client protection - in the PG wizard, it asks for the amount of data per client you expect to backup. The Default for "Data per computer" is 5GB. By default, DPM will co-locate 10 clients per Replica / Diff volume, so you will see by default DPM will allocate 61.56 GB the first time you create the PG. This is assuming 10 clients at 5GB / client.
