I have put a new RAID card (UCS-51) into my Dell Precision T5400.

I have connected this to 2 x 1TB SATA disks.

I have configured a mirror array in the RAID bios.

The array shows when I boot computer up.

Sadly every OS I try and install (Win7 & ESXi) says there is no storage devices found.

Can anyone assist? Pics below...

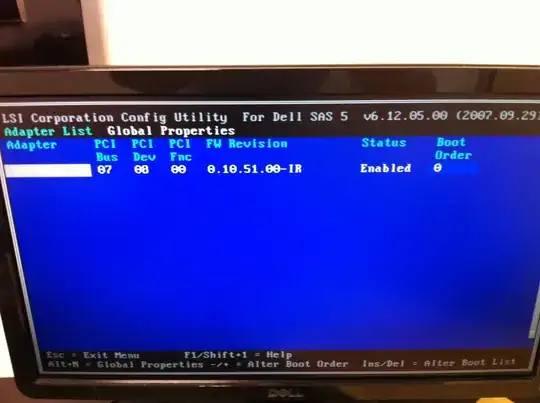

RAID BIOS

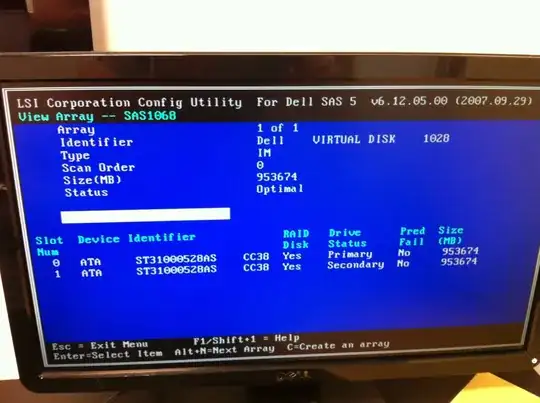

ARRAY

ARRAY

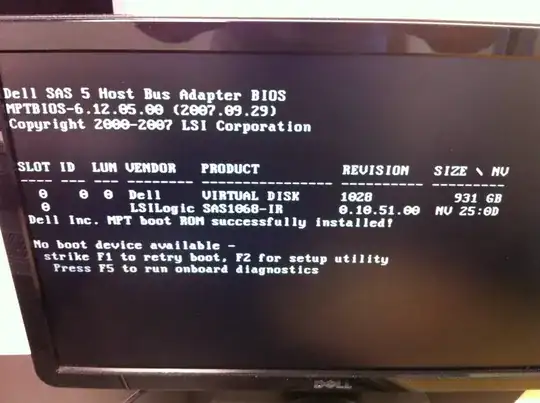

BOOT SCREEN

OS INSTALL ERROR

Paul Brown
  • 123
  • 3

1 Answers1

0

I don't know about this controller particular, but it seems that it requires OS Support in order to function (See http://support.dell.com/support/edocs/storage/RAID/SAS5iR/en/UG/HTML/index.htm)

Looks like you need to use a different controller, since ESXi doesn't recognize it.

Roman
  • 3,907
  • 3
  • 21
  • 34
  • I took this RAID card out of an older 32 bit Dell server which I had running ESXi server on. This makes me think that OS support is not required. Anyone for further advice? Thanks Paul – Paul Brown Nov 29 '11 at 22:04
