What is the longest PCIe card that can fit in a Dell R310

Question

I have a full height 4" full length 13" PCIe Card that I need to fit into a R310 or other low end rack-mountable server. Will this card fit? clearing the processor fan, memory, etc.

I've poured over the R310 Technical Reference but still have not found an answer.

http://i.dell.com/sites/content/shared-content/data-sheets/en/Documents/PowerEdge-R310-Tech-Guide-rev1.pdf

Link doesnt appear to work. – ErnieTheGeek Oct 21 '11 at 19:30 — ErnieTheGeek, Oct 21 '11 at 19:30
Don't forget to mark the correct answer. – mfinni Oct 21 '11 at 20:52 — mfinni, Oct 21 '11 at 20:52

ewwhite · Accepted Answer · 2011-10-21T19:47:35.427

11

You will not be able to fit a full-length 13" card in the R310. The usable depth of the slot is less than 7 inches.

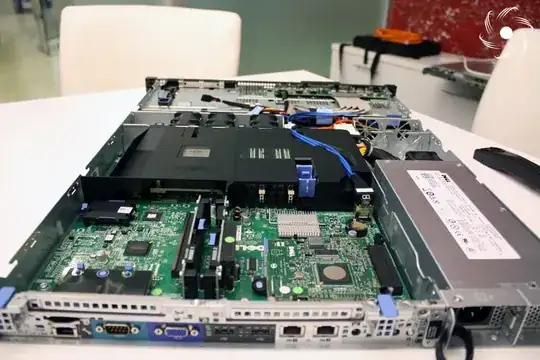

The server has a riser with a PCIe slot on either side. The length of the card is limited by the processor cage and the memory bank.

enter image description here

edited Oct 21 '11 at 19:47

answered Oct 21 '11 at 19:37

ewwhite

197,159
92
443
809

Thanks you!, after reading a little more I confirmed the same thing on Page 10 of the Technical Guide, it supports full height half length. After looking throught the models it looks like the R510 will support one full height full length PCIe card at x4 speed in slot 2. – JCutrer Oct 21 '11 at 19:49

score -1 · Answer 2 · answered Mar 26 '15 at 21:53

-1

Servers use half-length cards for everything. The slot is much shorter so any full length card simply will not fit. most are pci-e. Larry

answered Mar 26 '15 at 21:53

user278497

1

In addition to containing (questionable) generalsations, this answer adds nothing to the existing (excellent) answer, as far as I can see. – MadHatter Mar 27 '15 at 08:35
