I have created a set up which uses application gateway to route traffic to app services. Below are the details:
- Application Gateway - 1
- Azure App Service - 2
- App Service Plan - 1
- VNET and one subnet
App Service - 1 for .net 5 web app, 1 for .net 5 api app
Both browse locally and after publishing to app service, for api app when browsed from Azure portal I have to append /swagger which then translates to https://mywebapiapp.azurewebsites.net/swagger/index.html
App Gateway Set up Backend pool 1 for App Target type: App Services Target: Selected my web app (azure app)
1 for Api Similar with Target azure app service name changed
Backend Setting
Front end public IP is available

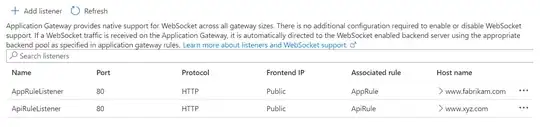

Listeners
Listener Type is selected as Multi site
Rules
App rule

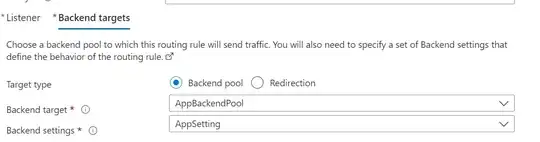

Backend targets tab
Similar set up for API Rule
Hosts file is updated
x.x.x.x www.fabrikam.com x.x.x.x www.xyz.com
When I browse fabrikam.com I end up in micorsoft.com/en-in/ not in my azure app hosting the .net 5 web app
First posted on StackOverflow here
