Previously I had vlan 10 (Wifi) and 20 (Management) already set and working correct for this setup: Mikrotik router RB2011iL, D-Link switch with trunk ports for both vlans, couple of Mikrotik CaPs and Ubiquiti APs. Now I need to add another Wifi SSID to vlan 30 (Video), and what I've done already:

  1. Made all SFP ports, all AP ports and switch-to-router port trunk vlan10/20/ and now also 30

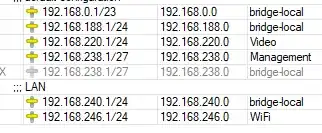

  2. Added vlan interface to Mikrotik bridge so now it looks like this (only Video vlan30 is new, others were already existing): enter image description here

  3. Added address to Video interface:

enter image description here

  1. Created DHCP server on Video interface with address pool 192.168.220.2-50
  2. Created new configuration in CapsMan for new SSID, added it as a slave to existing provision. Created new SSID in Unifi Controller. Mapped everything to Video vlan30.

Now I'm trying to connect with Android phone to any of APs. I get an IP from vlan30 range correctly (192.168.220.2), can see it both on phone and on DHCP Leases in Winbox. But I cannot ping neither phone-router, nor router-phone. What have I missed?
