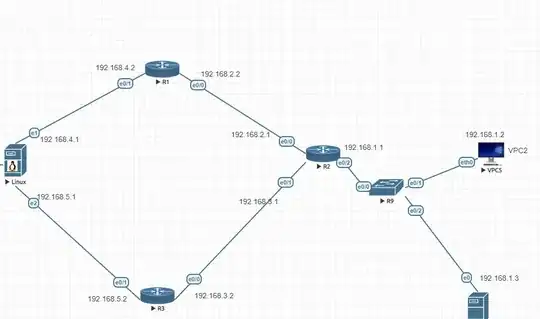

I don't understand my situation. I have a network lab like on a picture. I can't ping 192.168.5.1 from 192.168.1.2 then the 192.168.5.1 has 192.168.4.2 like a default gateway.

Linux# ip route
default via 192.168.4.2 dev eth1 proto static src 192.168.4.1 metric 90
default via 192.168.5.2 dev eth2 proto static src 192.168.5.1 metric 91

And and vice verse. Then a default gateway is 192.168.5.2 I can't ping 192.168.4.1. But I can see icmp packets on interfaces in both situations. What do I do wrong?

enter image description here

enter image description here

Paravozik
  • 23
  • 1
  • 5

1 Answers1

0

You seem not to have interface routes which are applied when you set IP on your interface.

They should look like this

192.168.4.0/24 dev eth1 proto static src 192.168.4.1 metric xx
192.168.5.0/24 dev eth2 proto static src 192.168.5.1 metric xx

You have two default routes instead. When the packet is created the kernel match packet destination through routing table and take first match. You have only two routes and they both are default (means 0.0.0.0/0), so first route in routing table always wins.

You seem to try diverting traffic by ip rules, but this will not work because source address will be applied after route will be chosen.

Imagine linux trying to send packet to 192.168.5.2. It should pick an outgoing address, but this depends on outgoing interface. To pick outgoing interface it have to consult routing table. It would look in "secondary" because of rule set, but source address is not yet set so it will look in "default". Routing table has only default route and first matches.

These rules can be set for changing routes for packets flowing through, not packets which were originated.
