Nginx server blocks and socket.io - CORS

Question

I have been running apps with this server blocks structure for sometime and it has never given me any problems.

geo $authentication {
  default "Authentication required";
  `Some ip number` "off";
}

server {
  listen         80 default_server;
  listen    [::]:80 default_server;
  server_name my.domain.com;
  return 301 https://$host$request_uri;
}

server {
  listen 443 ssl http2;
  listen [::]:443 ssl http2;
  ssl_certificate /etc/letsencrypt/live/my.domain.com/fullchain.pem; # managed by Certbot
  ssl_certificate_key /etc/letsencrypt/live/my.domain.com/privkey.pem; # managed by Certbot

  include /etc/letsencrypt/options-ssl-nginx.conf;
  ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem;

  server_name my.domain.com;
  client_max_body_size 200M;

  root /var/www/;
  index index.php index.html index.htm;

  location / {
    add_header Access-Control-Allow-Origin *;
    auth_basic $authentication;
    auth_basic_user_file /var/www/.htpasswd;
    try_files $uri $uri/ =404;
  }

  # Here is for example the app where I am running socket.io from
  location /myapp {
    auth_basic $authentication;
    auth_basic_user_file /var/www/.htpasswd;
    try_files $uri $uri/ =404;
  }

  # If this app has some sort of api route for express I do a proxy pass
  location /api/upload/ {
    proxy_pass http://localhost:5003/api/upload;
  }

However I am trying to use socket.io and I am having problems understanding if the subfolder is a problem as I keep getting CORS if I try to connect from the client as in

import { io } from 'socket.io-client'
const socket = io('http://localhost:5003')

On the server I got this

import express from 'express'
import { createServer } from 'http'
import { Server } from 'socket.io'

const app = express()
const prod = process.env.NODE_ENV === 'production'
const port = process.env.PORT || prod ? 5003 : 4000
const httpServer = createServer(app)

const io = new Server(httpServer, {
  cors: {
    origin: '*',
    methods: ['GET', 'POST']
  }
})

const connections = []

io.on('connection', (socket) => {
  connections.push(socket)
  console.log(`Socket id ${socket.id} connected`)

  socket.on('disconnect', () => {
    connections.splice(connections.indexOf(socket), 1)
  })
})

httpServer.listen(port, () => console.log(`App listening on port ${port}.`))

I can see that whereas on development it all works fine and it establishes a web socket connection:

On the server after the CORS of course it does not:

No matter what I try, I always end up getting this:

score 1 · Accepted Answer · edited Feb 20 '21 at 17:56

1

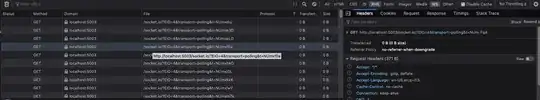

In your second picture, the socket.io lib is using polling. This may come because you didn't set the nginx config properly.

location /socket.io/ {
    proxy_pass http://localhost:5003/socket.io/;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "Upgrade";
    proxy_set_header Host $host;
}

Here is a good example.After changing this you should be able to reach your backend just using the following:

import { io } from 'socket.io-client'
const socket = io()

Notice that if all your request go through the Nginx, you don't need the CORS directives as all your request will be going to the same address and port.

edited Feb 20 '21 at 17:56

Álvaro

117
1
2
8

answered Feb 19 '21 at 17:52

SePeF

126
3

Thanks but where is `http://wsbackend` coming from? I tried it with `http://localhost:5003/socket.io/` and I get 404 – Álvaro Feb 19 '21 at 17:55
Is the address of your backend express + socket.io server. If the Nginx and backend are running in the same host you can try with 127.0.0.1, if it is a docker container it is the name of the container/service. from your code `const port = process.env.PORT || prod ? 5003 : 4000` if you don't set is in an env var and you are in development, then the port is 4000 – SePeF Feb 19 '21 at 18:17
I am doing this without docker just with a nginx server on ubuntu on linode, when I run the server I can see with pm2 that the app is indeed listening on 5003. I mean I want to run on port 4000 when in dev and 5003 when in production and that part actually works – Álvaro Feb 19 '21 at 18:19
are you serving your frontend code also over the nginx, if not you will get the CORS problem. – SePeF Feb 19 '21 at 18:28
The react front end is just accessed when you go to`https://my.domain.com/myapp/index.html` is the front end who access the backend with the proxy_pass from nginx, when I need to request something from an express route. The nginx file you see is the one that I am using. – Álvaro Feb 19 '21 at 18:31
Did you change the frontend code (`const socket = io()`)? If you did you could try `const socket = io('wss://my.domain.com')` to force TLS as you don't have a redirect to port 443 when you connect to port 80. – SePeF Feb 19 '21 at 18:49
When I do that I don't get CORS but the ws tab on network is blank and socket.io do not work – Álvaro Feb 19 '21 at 18:57
Let us [continue this discussion in chat](https://chat.stackexchange.com/rooms/119954/discussion-between-alvaro-and-sepef). – Álvaro Feb 19 '21 at 19:06
