I'm trying to create a tunnel between StrongSwan and palo alto. StrongSwan is running on a digital ocean droplet, Ubuntu. In my ipsec.conf, I have:
conn %default
ikelifetime=28800s
keyexchange=ikev1
authby=psk
type=tunnel
conn partner
left=1.2.3.4
leftid=1.2.3.4
leftsubnet=10.17.0.6
leftsourceip=10.17.0.6
right=a.b.c.d
rightid=a.b.c.d
ike=aes256-sha1-modp1024!
esp=aes256-sha1!
conn partner_ip_1
also=partner
rightsourceip=x.y.z.1
rightsubnet=x.y.z.1
auto=start
conn partner_ip_2
also=partner
rightsourceip=x.y.z.2
rightsubnet=x.y.z.2
auto=start
conn partner_ip_3
also=partner
rightsourceip=x.y.z.3
rightsubnet=x.y.z.3
auto=start
conn partner_ip_4
also=partner
rightsourceip=x.y.z.4
rightsubnet=x.y.z.4
auto=start

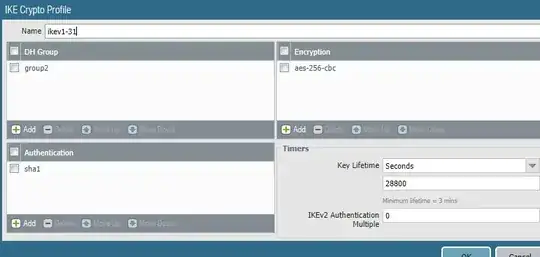

I'm able to establish connection but can't send/receive any traffic. My partner shared these configs from their end:
Everything else is default on my end. How can I get this working please?
Below are the logs from ipsec statusall
Status of IKE charon daemon (strongSwan 5.8.4, Linux 5.8.0-25-generic, x86_64):
uptime: 6 days, since Nov 09 17:55:31 2020
malloc: sbrk 7458816, mmap 0, used 1614864, free 5843952
worker threads: 11 of 16 idle, 5/0/0/0 working, job queue: 0/0/0/0, scheduled: 2786
loaded plugins: charon aesni aes rc2 sha2 sha1 md5 mgf1 random nonce x509 revocation constraints pubkey pkcs1 pkcs7 pkcs8 pkcs12 pgp dnskey sshkey pem openssl fips-prf gmp agent xcbc hmac gcm drbg attr kernel-netlink resolve socket-default connmark stroke updown eap-mschapv2 xauth-generic counters
Virtual IP pools (size/online/offline):
x.y.z.1: 1/0/0
x.y.z.2: 1/0/0
x.y.z.3: 1/0/0
x.y.z.4: 1/0/0
Listening IP addresses:
1.2.3.4
10.17.0.6
Connections:
partner_ip_1: 1.2.3.4...a.b.c.d IKEv1
partner_ip_1: local: [1.2.3.4] uses pre-shared key authentication
partner_ip_1: remote: [a.b.c.d] uses pre-shared key authentication
partner_ip_1: child: 10.17.0.6/32 === x.y.z.1/32 TUNNEL
partner_ip_2: 1.2.3.4...a.b.c.d IKEv1
partner_ip_2: local: [1.2.3.4] uses pre-shared key authentication
partner_ip_2: remote: [a.b.c.d] uses pre-shared key authentication
partner_ip_2: child: 10.17.0.6/32 === x.y.z.2/32 TUNNEL
partner_ip_3: 1.2.3.4...a.b.c.d IKEv1
partner_ip_3: local: [1.2.3.4] uses pre-shared key authentication
partner_ip_3: remote: [a.b.c.d] uses pre-shared key authentication
partner_ip_3: child: 10.17.0.6/32 === x.y.z.3/32 TUNNEL
partner_ip_4: 1.2.3.4...a.b.c.d IKEv1
partner_ip_4: local: [1.2.3.4] uses pre-shared key authentication
partner_ip_4: remote: [a.b.c.d] uses pre-shared key authentication
partner_ip_4: child: 10.17.0.6/32 === x.y.z.4/32 TUNNEL
Security Associations (4 up, 0 connecting):
partner_ip_1[23522]: ESTABLISHED 28 seconds ago, 1.2.3.4[1.2.3.4]...a.b.c.d[a.b.c.d]
partner_ip_1[23522]: IKEv1 SPIs: dfbe7dc560a6fd5f_i* d77aad31ae64bb47_r, pre-shared key reauthentication in 7 hours
partner_ip_1[23522]: IKE proposal: AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
partner_ip_1[23522]: Tasks queued: QUICK_MODE
partner_ip_3[23521]: ESTABLISHED 37 seconds ago, 1.2.3.4[1.2.3.4]...a.b.c.d[a.b.c.d]
partner_ip_3[23521]: IKEv1 SPIs: 60f983e4761ce5be_i* b7c41e54042b4728_r, pre-shared key reauthentication in 7 hours
partner_ip_3[23521]: IKE proposal: AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
partner_ip_3[23521]: Tasks queued: QUICK_MODE
partner_ip_4[23520]: ESTABLISHED 61 seconds ago, 1.2.3.4[1.2.3.4]...a.b.c.d[a.b.c.d]
partner_ip_4[23520]: IKEv1 SPIs: 3da4b052f8791e72_i* 32706fa421f1c60b_r, pre-shared key reauthentication in 7 hours
partner_ip_4[23520]: IKE proposal: AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
partner_ip_4[23520]: Tasks queued: QUICK_MODE
partner_ip_2[23519]: ESTABLISHED 89 seconds ago, 1.2.3.4[1.2.3.4]...a.b.c.d[a.b.c.d]
partner_ip_2[23519]: IKEv1 SPIs: 3cb5b1ec27787487_i* 4795fa19c8b86504_r, pre-shared key reauthentication in 7 hours
partner_ip_2[23519]: IKE proposal: AES_CBC_256/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
partner_ip_2[23519]: Tasks queued: QUICK_MODE
