ESXi 6.7 does not show all nics

Asked Aug 23 '20 at 14:58

Active Aug 23 '20 at 15:32

Viewed 1,398 times

We bought a used Dell R730 server and installed the customized ESXi ISO. VMs are running, everything is displayed correctly.

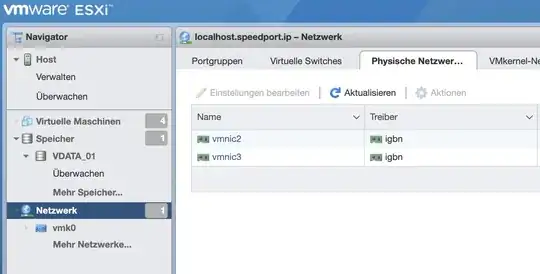

There are 2 network cards in the server, one Intel X520 1G and one Intel 82599 10G SFP+. But here only the 1G Nic is displayed and also gets an IP address. The 10G Nic is not displayed in the WebClient and Console as a VMNIC.

enter image description here

But under PCI devices the network card is detected.

enter image description here

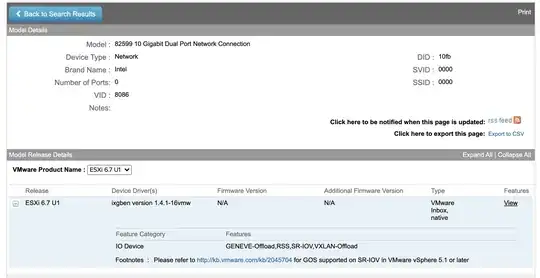

The 10G Nic is supported under VMware (compatibility list)

enter image description here

But the drivers seem to be loaded:

enter image description here

What can I do so that the ESXi host recognizes the NIC correctly and is assigned an IP address? What other possible solutions are there?

edited Aug 23 '20 at 15:32

Gerald Schneider

23,274
8
57
89

asked Aug 23 '20 at 14:58

Matthias

Your first screenshot shows that the NIC has been recognized. What makes you think it hasn't? Did you attach the NICs to your vSwitch? – Gerald Schneider Aug 23 '20 at 15:25
Because it is not displayed as VMNIC and therefore I cannot add it to the Vswitch – Matthias Aug 23 '20 at 15:30
1

Did you install Dell customized image of ESXi? https://www.dell.com/support/article/en-sg/sln288152/dell-emc-customized-image-of-vmware-esxi-availability-and-download-instructions?lang=en – Stuka Aug 23 '20 at 16:14
yes, the Dell customized images is installed – Matthias Aug 23 '20 at 17:33
Have you opened a SR? – Chopper3 Aug 23 '20 at 17:35
no, i guess its more a problem with ESXi – Matthias Aug 23 '20 at 18:01
I meant an SR with VMware – Chopper3 Aug 24 '20 at 08:24
Just to be clear, if you SSH to the ESXi node and run esxcfg-nics -l, does it list all the NICs? – batistuta09 Aug 25 '20 at 16:30

ESXi 6.7 does not show all nics

0 Answers0
