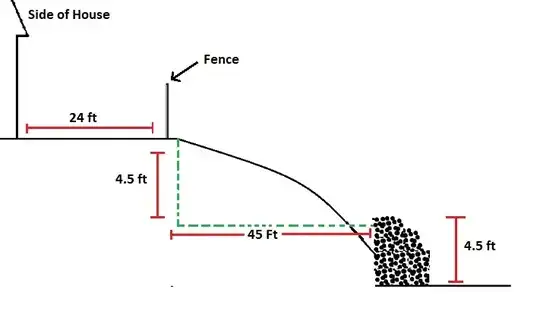

On the side of my house I have a slop that I want to grade.i attached a quick mock up of what it looks like: At the top of the slop is my fence. At the bottom of my slop is a retaining wall (approx 4ft in height) of loose rocks. The rocks outline the property line.

If I want to grade this slop, all i have to do it move dirt from one side to the other, right? Anything else i should consider besides drainage? (i have outlined in green what i want to change it to)

Answers to Q: I didnt build the retaining wall. I dont know what the slop is. i cant drive a mower on there without flipping. The height diff. between the bottom of fence and the rocks is approx. 6ft. I added some Pics and updated mock up. I will be doing the grading with a skid steer The rocks range in size. 8-12 inches at its smallest, and 16-24 at the largest. I live in Rockland, NY I dont know the type of soil i have, but there is rocks everywhere i dig - hence the name rockland county. I plan of replanting the slop. right now its just grass and weeds.

Thanks.

enter image description here enter image description here enter image description here

Padawan
  • 119
  • 4
  • What's on the other side of your fence in terms of soil level? Is the soil level on the other side the same as the top of your slope? – Bamboo Aug 05 '18 at 18:28
  • On the top, where the fence is, it's even with the other side of fence. On the other side of the retaining wall, the bottom part, it's pretty even with the other side of the retaining wall. There is approx 40 ft difference between the fence and rocks. – Padawan Aug 05 '18 at 19:56
  • Was thinking about a 3 ft retrain wall below the fence and utilize that rock wall as another retaining wall – Padawan Aug 05 '18 at 20:00
  • 1
    Is there any batter on the retaining wall, ie does it need to lean in to the expected soil to prevent it being pushed over? How is the fence at the top anchored into the ground? Concrete? – Colin Beckingham Aug 05 '18 at 20:01
  • Yet another question. I assumed the hash marks at the bottom were plants? Is this your loose rock wall? Are you asking to fill behind that wall with the dirt (fill)? If this is so, you have a great opportunity to put drain pipe and grave behind the wall as well as deciding on 'dead men' going into the slope to hold the wall against the surcharge. – stormy Aug 05 '18 at 21:59
  • 40 feet difference? Arghhh! What is your run? The 'level' ish, distance between the fence and the wall? Seriously a humongous drop! Is this your property? Or is this an 'easement' between properties that perhaps is under government propery? What is the horizontal distance between the fence and wall (just measure along whatever slope there is or you can navigate or even GUESS). – stormy Aug 05 '18 at 22:11
  • you should consider calling up your local fungal expert to see what mycelium hold up dirt hillsides the best that they carry until the grass can take over. – black thumb Aug 06 '18 at 05:54
  • @blackthumb You have gone over the edge with your fungus!! You just have to let me know what you see in this fungal promotion stuff! – stormy Aug 09 '18 at 22:53
  • @Padawan This is now a realistic problem. 40 feet is a bit different than 4.5 feet! Whew! You now have a 10% grade to the 'top' of your wall. To the bottom of your wall you have a 20% slope. Both are very stable and common for lawns. I like that you are considering a few 'short' walls with which to terrace. Far more interesting, you could even use a terrace to make a vegetable garden. What I'd love to know is what ideas you are entertaining for this area. Beautiful yard btw. I would also love to see the landscape around your home. I have to say I envision a boardwalk/stair system. – stormy Aug 09 '18 at 22:58
  • @stormy, as per the mock up above, i want to grad the area that is 45 ft long at a 1 -2 % slop for drainage. I dont have any immediate plans for it. I will probably put up a swing set for the kids, but in the future (5-10 years) I want to put up a detach garage for my diy projects. – Padawan Aug 10 '18 at 01:10
  • Can i just move dirt from one side to another? What i am worried about is whether the rock retaining wall at the lower part of the yard might fail if i add more soil to fill in to get my desired grade. Do the rocks act like a retaining wall? I am assuming i should be fine bc at other parts of the property the oil is almost over the rock retaining wall and there has never been a problem. The soil sometimes reaches all the way to the top. and the rock wall hasn't failed. Its been like that for decades. Again, the green dotted line is what i want to accomplish. – Padawan Aug 10 '18 at 01:23
  • This is called 'cut and fill'...ideally anything you cut out of a slope fills in another slope or empty space. A smart thing to do. I am going to try to draw on your drawing...I think 2 short 3' walls will work wonders. How WIDE is this area? Do not put up kiddie play areas so far from the home, I am serious. Yes, your rip rap wall definitely acts like a retaining wall to include drainage. If you could add a bigger picture with 'elevations' I could at least spot areas you need to have a professional engineer? What is the width of this area? – stormy Aug 10 '18 at 02:23

1 Answers1

2

What is the height or rise in elevation from your fence to that wall? What is the horizontal distance from your fence to the wall? Rise/Run = slope 6' of rise over 24' of run gives you a 25% slope. Making your slope less rounded and a straight shot will increase the speed of water flowing down your slope.

If that wall is not engineered or built properly you might have problems. Your 'surcharge' (the water in the soil behind and above the retaining wall) might be less but the erosion going over your wall will be more.

Did you build that retaining wall? What material? Is there a drain pipe behind and at the footing of this wall? Is there a foundation of sorts beneath your wall? Or is your wall a 'talus slope' of rock debris? Boulders? Please send a picture of your wall.

How will you be grading this slope theoretically? A big excavator? Or by hand? What is the square footage of this area (width X length or a side times another adjoining side)? Make sure that the elevation starts 2" minimum below your fence. There should be no soil or mulch or vegetation touching the bottom of your fence. If this is a rip rap retaining wall system, cutting that curve off your slope might overwhelm your wall with erosion and speed of water.

Grins. I don't know if I am looking at a slope of 100 feet or 5' in width. Where is your home? Above slope or down slope? That is very important! Please send pictures. This drainage stuff is kind of my forte. I taught this for college students. Changing drainage will always affect your neighbors unless the water is contained within your site only. There are laws and regulations about this we might need you to look into when you are able to send more information and pictures.

I'll eliminate all of these questions to answer and tell you what you need to know. Please fire questions to me back if you don't understand what I am asking.

I am sorry for all the questions within a non - answer. This is not an answer, just easier to ask all these questions.

Another question is WHERE exactly do you want to move the soil? Behind the fence or below the rocks? Uphill or downhill? Are these loose rocks in a gabion or just a 'talus' slope or are these boulders (larger than 18 to 24 inches or 2 man rock...takes 2 men to life said rock versus a rock that one man can lift or 3 man rock that takes 3 men to life, this is real)!

Where is it that you live? What kind of soil do you have? Are you planning to replant this slope? What is planted on it now? Have you considered terracing? Making steps out of the slope?
